Quick Details

  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: winston
  • Model Number: SSR- 10DD
  • Theory: Solid State Relay
  • Usage: General Purpose
  • Size: Miniature
  • Protect Feature: Sealed
  • Contact Load: Low Power
  • Product name: SSR- 10DD Single phase DC Solid state relay
  • Load voltage: 5-60VDC
  • Load current: 10A 25A 40A,60A,75A,90A
  • Control current: DC5-50mA
  • Control voltage: DC3-32V
  • On voltage: ≤1.5V
  • Off leakage current: ≤2mA
  • On-off time: ≤10mS
  • The work instructions: LED

Packaging & Delivery

Packaging Details: Export standard carton box of ssr relays
Delivery Detail: 3-15days,depend on order quantity



Product Description
SSR- 10DD Single phase DC Solid state relay
Specification

1.Bidirectional thyristor output, zero voltage, zero current turn off;
2.Optical isolation between the input circuit and output circuit;
3.Isolation between the input - output voltage 2500 v.
4.100% load current aging test, through the European CE certification

Technical parameters
Input3-32VDC(fixed current) 13mA &12V
Output24-380VAC/90-480VAC(10-75Amp)
Control typeZero Cross Trigger
Response timeON<20ms/OFF<40ms
Voltage withstandOver 2.5Kvac/1Min
Insulating strenghOver 50m/500DC
Dimmension62.5*44.8*23.2mm
High strengh ABS engineering plastics, gray case with LED indicator
Basic typeSSR-10DASSR-25DASSR-40DASSR-50DASSR-60DASSR-75DA
High voltage type SSR-25DA-HSSR-40DA-HSSR-50DA-HSSR-60DA-HSSR-75DA-H



Input 80-250VAC
Output24-380VAC/90-480VAC(10-75Amp)
Control typeZero Cross Trigger
Response timeON<20ms/OFF<40ms
Voltage withstandOver 2.5Kvac/1Min
Insulating strenghOver 50m/500DC
Dimmension62.5*44.8*23.2mm
High strengh ABS engineering plastics, gray case with LED indicator
Basic typeSSR-10AASSR-25AASSR-40AASSR-75AA
High voltage type SSR-25AA-HSSR-40AA-HSSR-75AA-H



Input Trimmer/250K to 110V
Output24-380VAC(10-40Amp)
Control typePhase control
Voltage withstandOver 2.5Kvac/1Min
Insulating strenghOver 50m/500DC
Dimmension62.5*44.8*23.2mm
High strengh ABS engineering plastics, gray case with LED indicator
Basic typeSSR-10VASSR-25VASSR-40VA
High voltage type



Input 3-32VDC 12mA &12V
Output5-60VDC/5-200VAC(5-80Amp)
Control typeIsolated by photocouple
Response timeON<10ms/OFF<20ms
Voltage withstandOver 2.5Kvac/1Min
Insulating strenghOver 50m/500DC
Dimmension62.5*44.8*23.2mm
High strengh ABS engineering plastics, gray case with LED indicator
Basic typeSSR-05DDSSR-10DDSSR-25DDSSR-50DDSSR-80DD
High voltage type SSR-10DD-HSSR-25DD-HSSR-50DD-HSSR-80DD-H

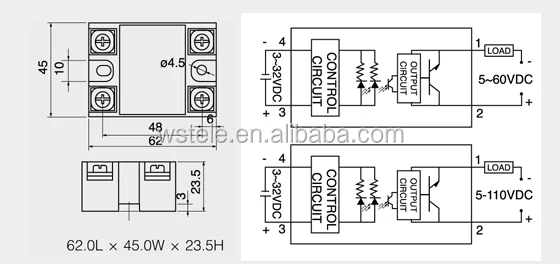

Outline dimension
