self-locking led push button switch Convex head button red green yellow 22mm

FOB Reference Price:Get Latest Price
$1.20 - $1.30 / Piece | 100 Piece/Pieces (Min. Order)
Lead Time:
Quantity(Pieces) 1 - 20000 >20000
Est. Time(days) 7 Negotiable
Customized logo (Min. Order: 20000 Pieces)
Customized packaging (Min. Order: 20000 Pieces)
Report Suspicious Activity
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Winston / OEM
Model Number:
Protection Level:
Head: IP40 Terminals: IP20
Max. Current:
Max. Voltage:
Protective treatment:
Operating temperature:
- 25 ~ +70 ℃
Storage temperature:
- 40 ~ +70 ℃
Short-circuit protection:
More than 50,000 hours at nominal voltage
Voltage limit:
0.5Un ≤ U ≤ 1.1Un
Terminal symbol:
Supply Ability
Supply Ability:
20000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
export packing for push button
Lead Time :
Quantity(Pieces) 1 - 20000 >20000
Est. Time(days) 7 To be negotiated
Product Description


self-locking led push button switch Convex head button

red green yellow 1 Contact 22mm

XB series button switch

1. The contacts are made of AgCdO15 material, which has strong on and break power and long life.

2. The led button uses LED light for low power consumption and long life.

3. Both the knob switch and the key knob switch have a function to prevent follow-up and prevent the body from following the handle.

4. Two wiring methods are available:

(1) screw wiring, (2) plug-in wiring.


Screw wiring: simple and convenient.

Plug-in wiring: high connection reliability, especially suitable for use in vibration more powerful places, such as: cars, lawn mowers, engineering machinery and so on.

5. Can be installed on the thickness of 10mm mounting panel, is the best of its kind.

6. Integrated structural design, installation is very convenient, while avoiding the installation of the quality problems caused by the lack of installation.

7. The product's performance meets the requirements of the national standard GB14048.5 (IEC60947-5-1) and is CCC product certified.

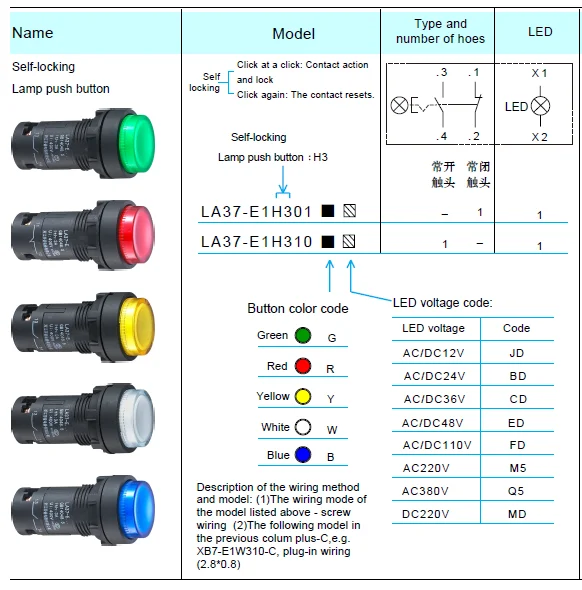

Description of the wiring method and model:

(1)The wiring mode of the model listed above - screw wiring

(2)The following model in the previous colum plus-C,e.g. XB7-E1W310G-C, plug-in wiring(2.8*0.8)


 Note: The button can also be installed in the aperture of 25 mounting hole, after the addition of variable diameter ring can be installed in the aperture of the installation hole of 30.


XB series button switch technical parameters


Meet the standards

GB 14048.5 , IEC 60947-5-1

Protective treatment


Ambient temperature


Operating temperature: - 25 ~ +70 ℃

Storage temperature: - 40 ~ +70 ℃

Vibration resistance

5 gn (2-500Hz)

Conforms to IEC 60068-2-6

Protection level

Head: IP40

Terminals: IP20

Mechanical life

Spring-loadd button: 5 million times

Knob switch: 1 million times

Emergency stop button: 300,000 times


Features of the LED

Rated operating voltage

Operating current



11.5 mA (Red, green, yellow, blue indicator)

11 mA (White light)


13.8 mA

(Red, green, yellow, blue indicator)

10.2 mA(White light)


110V AC

5.5 mA

(Red, green, yellow, blue, white indicator)

220V AC

11 mA

(Red, green, yellow, blue, white indicator)


More than 50,000 hours at nominal voltage

Voltage limit

0.5Un ≤ U ≤ 1.1Un

Terminal symbol


Wiring capabilities


Screw wiring


Min 1 x 0.5 mm2 without wire connector

Tightening moment: 0.5 N.m (recommended value)

Up to 2 x 1.5 mm2 with wire connector head

Tightening moment: 0.5 N.m (recommended value)


Plug-in wiring Connector


0.8*2.8 mm Faston Connector


Packaging & Shipping


Our Services


Company Information





Q: How to confirm the sensors model ?


A. The buyer need to provide the below information :

Voltage  NPN/PNP   NO/NC/NO+NC   Detected object   Detected distance



Q: How to adjust the distance of the photoelectric switch ?


A. Clockwise make the detected distance increase and anti-clockwise decrease
