2013 NEW 12 volt Heater with Thermostat HV 031\HVL 031 Series 100W To 400W

FOB Reference Price:Get Latest Price
US $27-50 / Piece | 1 Piece/Pieces (Min. Order)
Supply Ability:
50000 Piece/Pieces per Quarter
Port:
Ningbo/Shanghai
Report Suspicious Activity
Overview
Quick Details
Electric Heater Type:
Fan Heater
Heating Element:
PTC,high performance cartridge
Installation:
Portable
Certification:
CE, RoHS
Function:
Adjustable Thermostat
Use:
Industrial
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
WINSTON/OEM
Model Number:
fan heater HV031/HVL 031 100W to 400W
Service life:
50000h at 25°C
Name:
2013 NEW 12 volt Heater with Thermostat hv 031\HVL 031
Power:
100W 150W 200W 300W 400W
Model:
2013 NEW 12 volt Heater with Thermostat hv 031\HVL
Packaging & Delivery
Packaging Details
Export standard carton box for 2013 NEW 12 volt Heater with Thermostat HV 031\HVL 031 Series 100W To 400W
Delivery Time
3-7 days after get payment

2013 NEW 12 volt Heater with Thermostat HV 031\HVL 031 Series 100W To 400W

Product Description

Compact size

Flat design

Built-in overheat protection

3-side DIN RAIL mountable

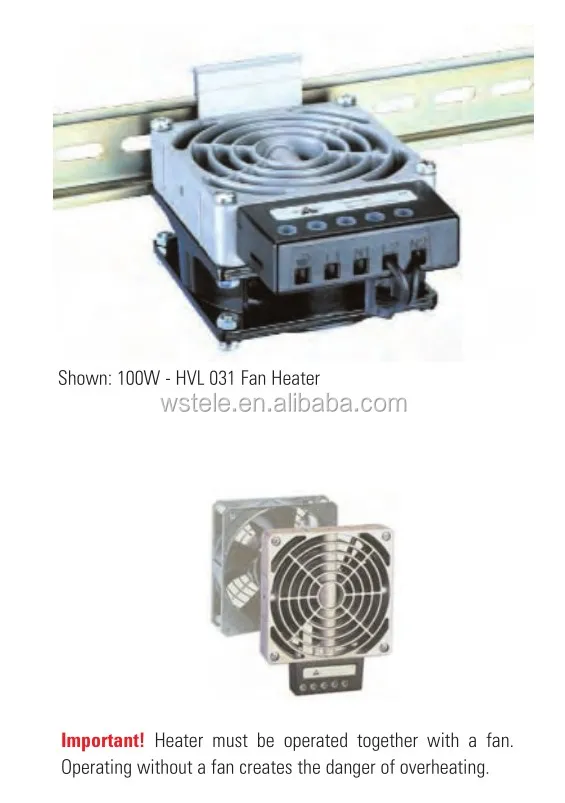

The compact high-performance fan heater prevents formation of condensation in control or switch systems and provides an evenly distributed interior air temperature in enclosures. This fan heater is available without fan (HV 031) as well as with fan (HVL 031).



Technic data



HVL 031

Heater with fan

Heating element

high performance cartridge

Temperature safety cut-out

to protect against overheating in case of fan failure, automatic reset

Heater body

die-cast aluminium (glass bead blasted)

Connection

3-pole screw connector 2.5mm², clamping torque 0.8Nm max.

Connection casing

plastic according to UL94 V-0, black

Mounting

clip for 35mm DIN rail, EN 60715

Fitting position

vertical airflow (air outlet up)

Operating/Storage temperature

-45 to +70 °C (-49 to +158 °F)

Operating / Storage humidity

max. 90 % RH (non-condensing)

Protection type/Protection class

IP20 / I (earthed)

Approvals

UL File No. E187294 (VDE: 230V only: VDE)

Axial fan, ball bearing

airflow see table



service life 50 000h at 25°C (77°F)

Connection (axial fan)

2-pole screw connector 2.5mm² (L2/N2)



Important: Heater must be operated together with fan. Operating without a fan creates the Danger of overheating!

Art. No. HV 230VAC,

50/60 Hz

Art. No. HV 120VAC,

50/60 Hz

Heating capacity

Dimensions

Weight (approx.)

03100.0-00

03100.9-00

100W

80 x 112 x 22mm

0.40kg

03101.0-00

03101.9-00

150W

80 x 112 x 22mm

0.40kg

03110.0-00

03110.9-00

200W

119 x 151 x 22mm

0.50kg

03111.0-00

03111.9-00

300W

119 x 151 x 22mm

0.50kg

03112.0-00

03112.9-00

400W

119 x 151 x 22mm

0.50kg





Art. No. HVL 230VAC,

50/60 Hz

Art. No. HVL 120VAC,

50/60 Hz

Heating capacity

Pre-fuse T

(time-delay)

230VAC/ 120VAC

Airflow min.,

free flow

Dimensions

Weight (approx.)

03102.0-00

03102.9-00

100W

1A/ 1.4A

35m³/h

80 x 112 x 47mm

0.60kg

03103.0-00

03103.9-00

150W

1.25A/ 2A

35m³/h

80 x 112 x 47mm

0.60kg

03113.0-00

03113.9-00

200W

1.4A/2.5A

108m³/h

119 x 151 x 47mm

0.90kg

03114.0-00

03114.9-00

300W

2A/ 4A

108m³/h

119 x 151 x 47mm

0.90kg

03115.0-00

03115.9-00

400W

4A/ 5A

108m³/h

119 x 151 x 47mm

0.90kg





Size







Example of connectio
